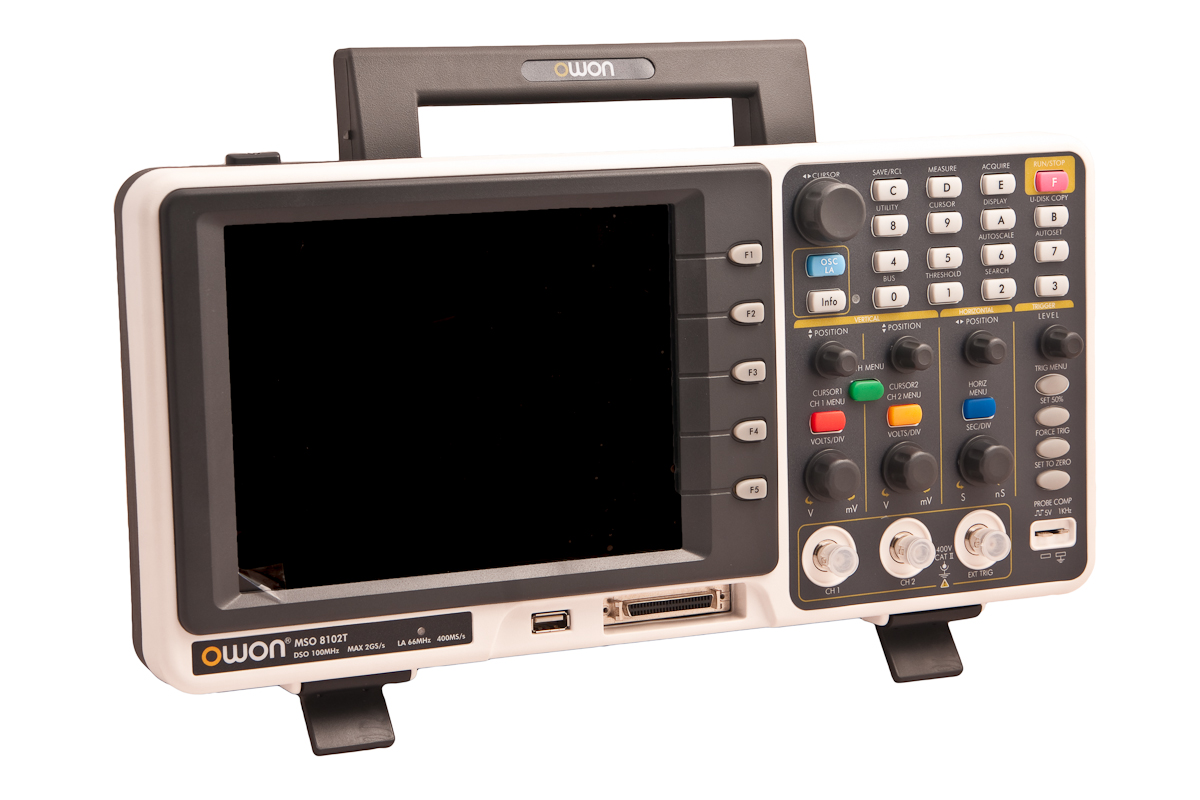

OWON MSO8102T 2 Kanal Oszilloskop + 16 Kanal Logic Analyzer 100MHz

OWON  MSO 8102T 100MHz
2 Kanal - 100MHz - 2GS/s Portable Digital Storage Oscilloscope



Lieferumfang:

  • OWON MSO8102T
  • Logik Analyzer 16 Kanal
  • 2 Tastköpfe
  • Netzkabel
  • USB Kabel,
  • PC Software
  • Handbuch Deutsch und Englisch


Das neue MSO8102T enthält einen 16 Kanal Logik-Analyser und ein Digital Speicher Oszilloskop in einem Gerät.

Die 8 Zoll großen Farb TFT-LCD Bildschirme lassen sich dank der hohen Auflösung von 640*480 Pixeln gut ablesen und auch die Menüführung ist durchdacht und auch ohne Anleitung in wenigen Minuten einfach zu handhaben.



Model  MSO5022S     MSO7102T  MSO8102T
 Bandwidth  25MHz  100MHz  100MHz
 Sample rate(Real time)  100MS/s  1GS/s
 (single channel)
 1GS/s
 (2GS/s for single channel)
 Horizontal Scale(S/div)  5ns/div~100s/div,step by 1~2.5~5  5ns/div~100s/div,step by 1~2~5
 Rise time  =14ns  =3.5ns
 Channels  Dual
 Display  7.8'' color STN LCD
 640×480 pixels
 8'' color TFTLCD
 640×480 pixels
 Dimension  370mm(L)x180mm(H)x120mm(W)
 Weight


 2.2kg





Main Features:
1. Autoscale
2. Support both DSO and LA
3. 2 channels+1(External) (DSO)
4. Advanced trigger functions,Various methods for data analysis.
5. 7.8 or 8.0 inch LCD color display for large view
6. Support USB for data transmission to PC
7. USB Flash Disk Storage
8. 20 Automatic Measurements

Digital Storage Oscilloscope:
1. 25MHz~100MHz bandwidth
2. Up to 1GS/s real time sample rate
3. Max 6000 record length for each channel

Logic Analyzer:
1. 33MHz~66MHz bandwidth
2. Up to 400MS/s real time sample rate
3. 16 input channel


 Oscilloscope Specification
 Model Name  MSO5022S  MSO7102T  MSO8102T
 Bandwidth  25MHz  100MHz  100MHz
 Sample Rate(Real time)  100MS/s  1GS/s
 (single channel)
 1GS/s
 (2GS/s for single channel)
 Rise time  =14ns  =3.5ns
 Display  7.8'' color STN LCD,
 640×480 pixels
 8'' color TFTLCD
 640×480 pixels
 Channel  2+1(External)
 Horizontal scale (s/div)  5ns/div-5s/div step by 1-2.5-5  2ns/div~100s/div,step by 1~2~5
 DC accuracy(Average)  Average>16:±(3%reading+0.05div) for ?V
 Vertical Sensitivity  5mV/div -5V/div  2mV/div -10V/div
 DC Gain Accuracy  ±3%
 Vertical resolution (A/D)  8 bits resolution (2CH simultaneously)
 Interpolation  (sin x)/x
 Max. Input Voltage  300V (DC + AC PK-PK)  400V(DC + AC Peak)
 Input impedance  1MO±2% in parallel with 20pF±5pF
 Probe attenuation
 factor
 1X,10X,100X,1000X
 Trigger Mode  Edge, Video, Alternate
 Acquisition mode  Normal, Peak Detect, Average
 Record length  4m
 Waveform storage  4 waveforms
 Automatic Measurement  Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot
 ,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A?B
 Delay A?B
 Waveform math  +, -, FFT
 Power supply  100-240V ACRMS,50Hz/60Hz,CAT?
 Lissajou’s
 figure
 Bandwidth  25MHz  100MHz
 Phase
 difference
 ±3 degrees
 Communication interface  USB
 Fuse  1A, T grade, 250V



 Logic Analyzer specification
 Model Name  MSO5022S  MSO7102T  MSO8102T
 Sample rate (real time)  20S/s~100MS/s  20S/s~400MS/s
 Bandwidth  33MHz  66MHz
 Channels  16
 Record length  4M/channel
 Input impedance  1MO±2%
 Trigger mode  Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data  width  trigger,Distributed queue trigger
 Trigger position setting  Pre-trigger, mid-trigger, re-trigger
 Threshold Voltage  ±10V(4 settings)
 Input Signal Range  ±15V
 Data search  Available
 Data System  Binary system, Decimal system, Hex
 Digital filter  0,1,2 optional
 Setting storage  10 settings
 USB flash disk storage  Available
