OWON MSO7102TD Oszilloskop + 16 Kanal Logic Analyzer 100MHz
OWON MSO7102TD Oszilloskop + 16 Kanal Logic Analyzer 100MHz
499,80 €
% 718,05 € 30.39% gespart
Sofort verfügbar, Lieferzeit: 1-3 Tage

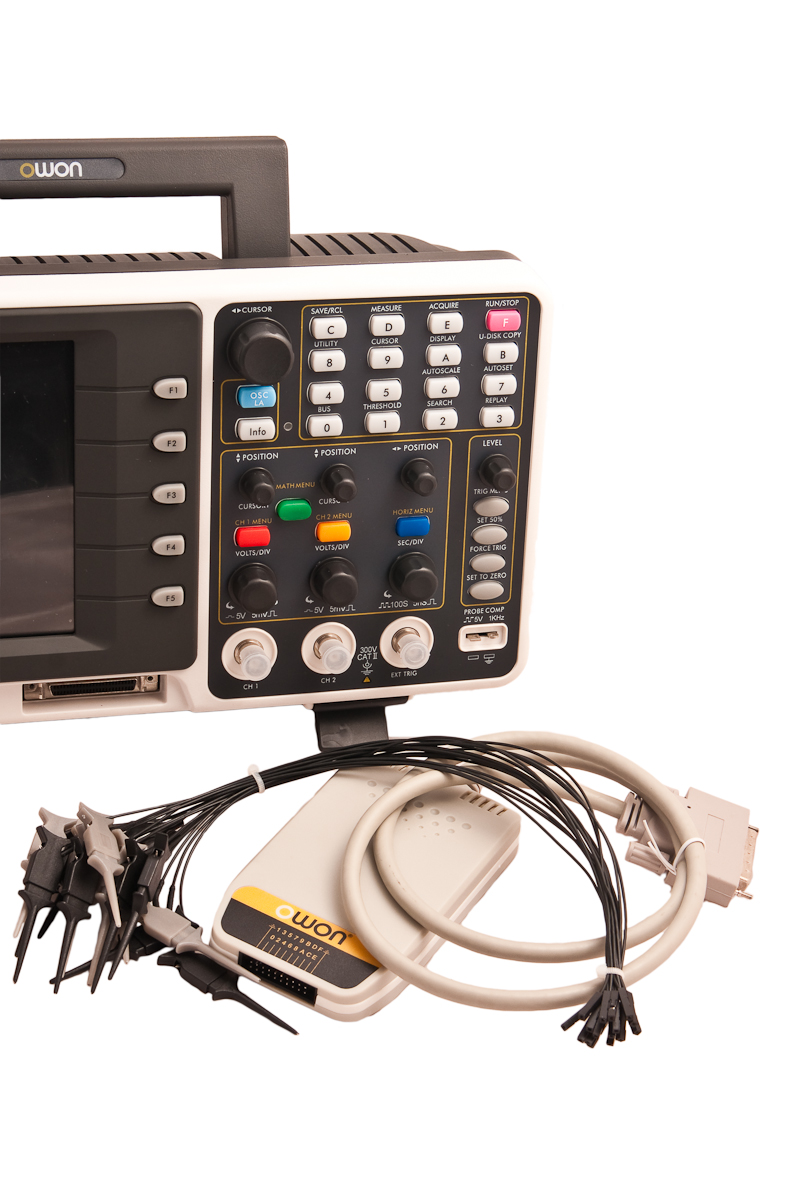

OWON MSO7102TD Oszilloskop + 16 Kanal Logic Analyzer 100MHz
Lieferumfang:
- OWON MSO7102
- Logik Analyzer 16 Kanal
- 2 Tastköpfe
- Netzkabel
- USB Kabel,
- PC Software
- Handbuch Deutsch und Englisch
Das MSO7102T enthält einen 16 Kanal Logik-Analyser und ein Digital Speicher Oszilloskop in einem Gerät.
Die 8 Zoll großen Farb TFT-LCD Bildschirme lassen sich dank der hohen Auflösung von 640*480 Pixeln gut ablesen und auch die Menüführung ist durchdacht und auch ohne Anleitung in wenigen Minuten einfach zu handhaben.
Das MSO7102T bietet im Oszilloskop Modus eine Bandbreite von 100 MHz bei 1 GS/s (1 Milliarde Abtastungen pro Sekunde) und im Logik-Analyser Modus eine Bandbreite von bis zu 66 MHz bei 400MS/s auf 16 Kanälen mit einer Speichertiefe von 4 Millionen Werten pro Kanal.
| Oscilloscope Specification | ||||
| Model Name | MSO5022S | MSO7102T | MSO8102T | |
| Bandwidth | 25MHz | 100MHz | 100MHz | |
| Sample Rate(Real time) | 100MS/s | 1GS/s (single channel) | 1GS/s (2GS/s for single channel) | |
| Rise time | =14ns | =3.5ns | ||
| Display | 7.8'' color STN LCD, 640×480 pixels | 8'' color TFTLCD 640×480 pixels | ||
| Channel | 2+1(External) | |||
| Horizontal scale (s/div) | 5ns/div-5s/div step by 1-2.5-5 | 2ns/div~100s/div,step by 1~2~5 | ||
| DC accuracy(Average) | Average>16:±(3%reading+0.05div) for ?V | |||
| Vertical Sensitivity | 5mV/div -5V/div | 2mV/div -10V/div | ||
| DC Gain Accuracy | ±3% | |||
| Vertical resolution (A/D) | 8 bits resolution (2CH simultaneously) | |||
| Interpolation | (sin x)/x | |||
| Max. Input Voltage | 300V (DC + AC PK-PK) | 400V(DC + AC Peak) | ||
| Input impedance | 1MO±2% in parallel with 20pF±5pF | |||
| Probe attenuation factor | 1X,10X,100X,1000X | |||
| Trigger Mode | Edge, Video, Alternate | |||
| Acquisition mode | Normal, Peak Detect, Average | |||
| Record length | Max.6000 points on each channel | |||
| Waveform storage | 4 waveforms | |||
| Automatic Measurement | Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A?B | |||
| Waveform math | +, -, FFT | |||
| Power supply | 100-240V ACRMS,50Hz/60Hz,CAT? | |||
| Lissajou’s figure | Bandwidth | 25MHz | 100MHz | |
| Phase difference | ±3 degrees | |||
| Communication interface | USB | |||
| Fuse | 1A, T grade, 250V | |||
| Logic Analyzer specification | |||
| Model Name | MSO5022S | MSO7102T | MSO8102T |
| Sample rate (real time) | 20S/s~100MS/s | 20S/s~400MS/s | |
| Bandwidth | 33MHz | 66MHz | |
| Channels | 16 | ||
| Record length | 4M/channel | ||
| Input impedance | 1MO±2% | ||
| Trigger mode | Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger,Distributed queue trigger | ||
| Trigger position setting | Pre-trigger, mid-trigger, re-trigger | ||
| Threshold Voltage | ±10V(4 settings) | ||
| Input Signal Range | ±15V | ||
| Data search | Available | ||
| Data System | Binary system, Decimal system, Hex | ||
| Digital filter | 0,1,2 optional | ||
| Setting storage | 10 settings | ||
| USB flash disk storage | Available | ||
| Model | MSO5022S | MSO7102T | MSO8102T |
| Bandwidth | 25MHz | 100MHz | 100MHz |
| Sample rate(Real time) | 100MS/s | 1GS/s (single channel) | 1GS/s (2GS/s for single channel) |
| Horizontal Scale(S/div) | 5ns/div~100s/div,step by 1~2.5~5 | 5ns/div~100s/div,step by 1~2~5 | |
| Rise time | =14ns | =3.5ns | |
| Channels | Dual | ||
| Display | 7.8'' color STN LCD 640×480 pixels | 8'' color TFTLCD 640×480 pixels | |
| Dimension | 370mm(L)x180mm(H)x120mm(W) | ||
| Weight | 2.2kg | ||
